Data sheet updated in May 2026

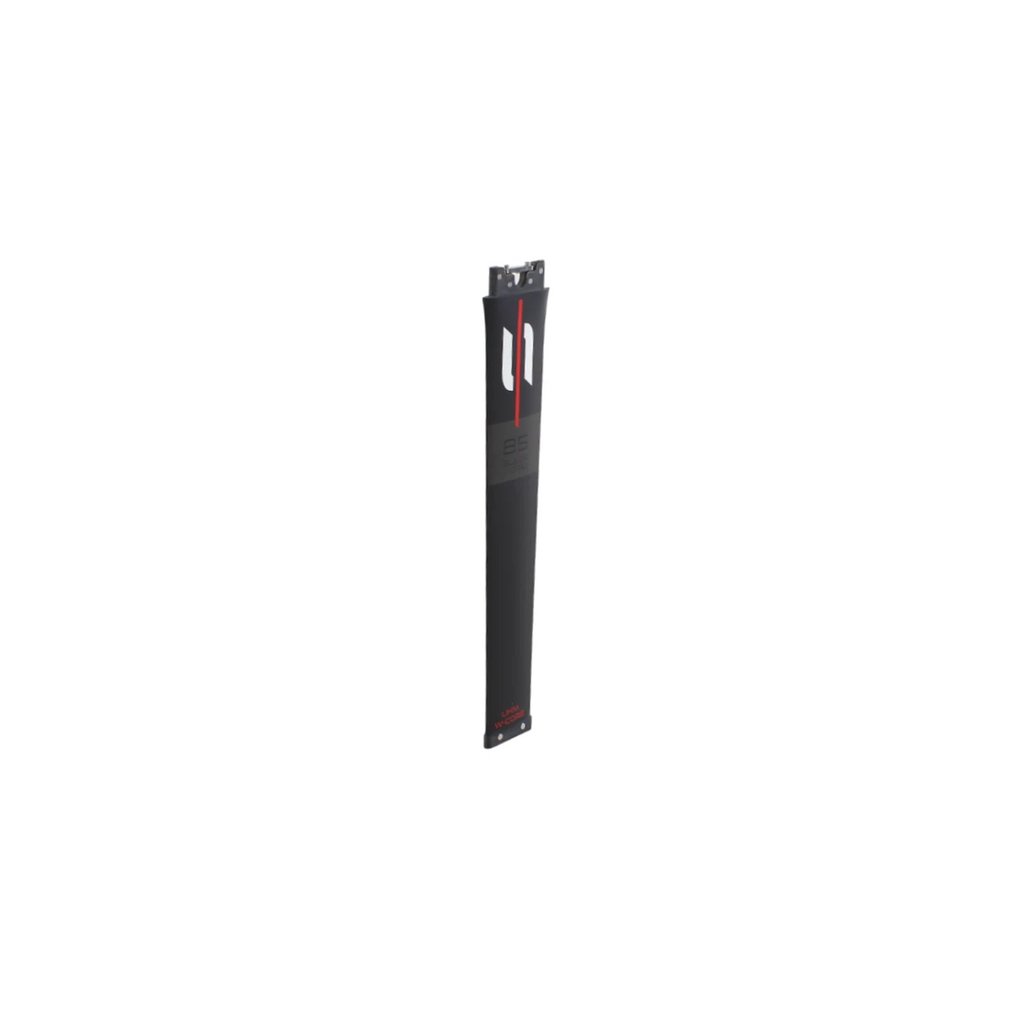

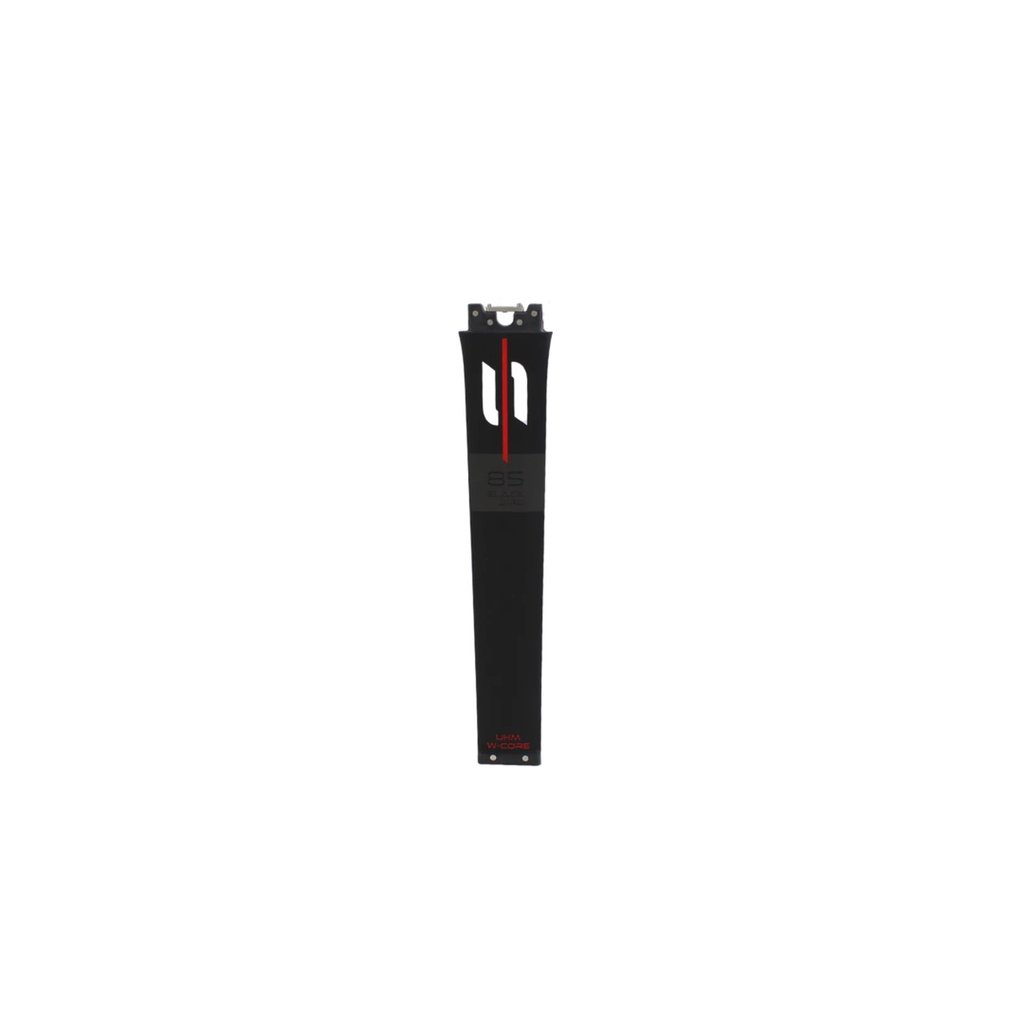

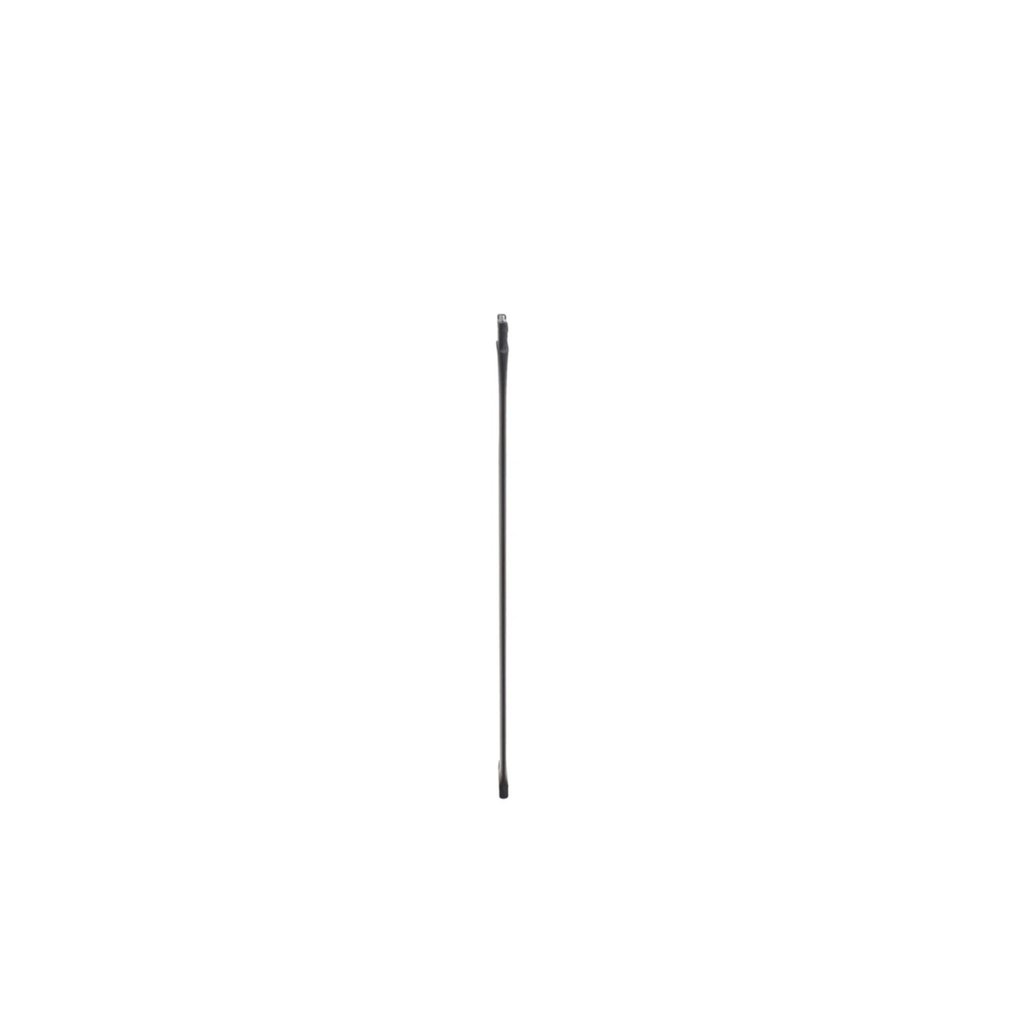

Sabfoil Piantone Blackbird 85 UMH W-Core. A high-modulus carbon mast from the Blackbird range, featuring W-Core technology. Its race-optimised profile provides extreme stiffness and instant responsiveness for top-tier performance in all conditions. The 85 cm length offers a great balance between clearance in the waves and a compact feel.
KEY INFORMATION
SABFOIL PIANTONE BLACKBIRD 85, UHM CARBON HYDROFOIL MAST
What we like
- A race-optimised profile with a slightly increased chord for the perfect blend of speed, responsiveness, and manoeuvrability.
- Ultra High Modulus (UHM) carbon construction with W-Core technology provides exceptional stiffness while maintaining resilience.
- The R8 mast-fuselage connection is compatible with the Kraken Modular System.
- 85 cm length: versatile for wing, wave, and freeride disciplines.
- An optimised weight-to-performance ratio for ambitious riders.
Available Length
85 cm
Color
Black
Discipline
All-Round
Connection
R8 (Kraken Modular System)
Included / Not included
- ✓ Sabfoil Piantone Blackbird 85 UMH W-Core Mast (M85/BB) x 1
- ✗ Front Wing (sold separately)
- ✗ Fuselage (sold separately)
- ✗ Stabilizer (sold separately)
- ✗ Tuttle / Deep Tuttle / Rail Plate (sold separately)
- ✗ Protection bag
DETAILED DESCRIPTION
Pure Speed, Absolute Control
Designed with a profile as fast as a pure race mast, it incorporates a slightly increased chord that has been precisely optimised to offer the perfect balance of speed, instant response, and ultimate manoeuvrability.
Advanced Technology for Uncompromising Performance

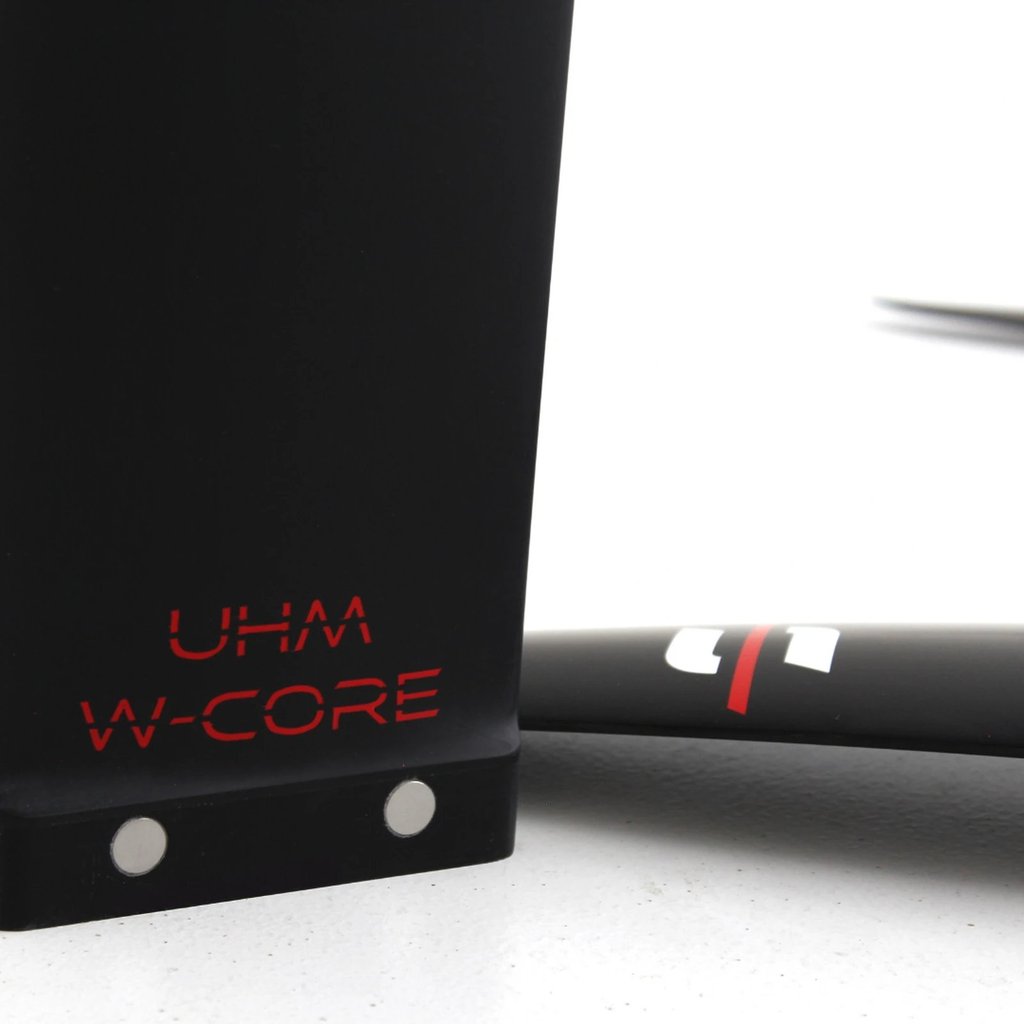

Constructed from Ultra High Modulus (UHM) carbon, this mast provides exceptional stiffness while maintaining excellent resilience. This is achieved with W-Core technology, which optimises the weight-to-performance ratio. The result is a ride that feels both smooth and powerful, allowing you to access your foil's full potential in all conditions.
Who is it for?
The Piantone Blackbird 85 is for ambitious riders seeking maximum speed and stability. It's also for freestylers and wave riders who require instant responsiveness, foilers looking for the best stiffness-to-weight ratio, and any rider who accepts nothing less than the best, whatever the conditions.
| Specifications | |
|---|---|
| Sabfoil Reference | M85/BB |
| Range | Blackbird |
| Height | 850 mm (85 cm) |
| Thickness A | 17.3 mm |
| Thickness B | 15.3 mm |
| Thickness C | 13.5 mm |
| Chord A | 148.4 mm |
| Chord B | 131.5 mm |
| Chord C | 120 mm |
| Weight (approx.) | 1790 g |
| Material | UHM + W-Core (high modulus carbon) |
| Mast-fuselage connection | R8 |
| System | Kraken Modular System |
| Color | Black |
FAQ, SABFOIL PIANTONE BLACKBIRD 85
Sabfoil presents the M85/BB as a mast for ambitious riders seeking maximum speed and stability, freestylers and wave riders who require instant responsiveness, and foilers in search of the best stiffness-to-weight ratio. The 85 cm length is a versatile option, sitting between the compactness of the 75 cm and the extra clearance offered by longer masts.
Both masts share the exact same profile (chords 148.4 / 131.5 / 120 mm, thicknesses 17.3 / 15.3 / 13.5 mm) and the same UHM Carbon + W-Core technology construction. The key differences are in height: the M85/BB is 850 mm (vs 750 mm) and its weight: 1790 g (vs 1665 g for the M75). The 85 cm mast provides more clearance in chop and swell.
The Piantone Blackbird mast range is available in four lengths: M75/BB (75 cm), M85/BB (85 cm, this mast), M95/BB (95 cm), and M110/BB (110 cm).
Sabfoil lists the following R8 fuselages as compatible: F603K, F653K, F663K, F703K, F713K, F753K, F903K, and F1003K. The R8 connection is fully compatible with the Kraken Modular System.
Sabfoil offers several top plates that are compatible with the Kraken Modular System: the T04K (Deep Tuttle), CP02K/Ti (Carbon Rail Plate with titanium inserts), and P02K (Rail Plate KMS). The Q02K (Titanium Quick Release System) is also compatible.
Sabfoil offers the Cover Mast C bag (reference MA023), which is explicitly compatible with the M85/BB, as well as the M93K, M94K, M95VK, M95BB, M96, and M91 masts.
